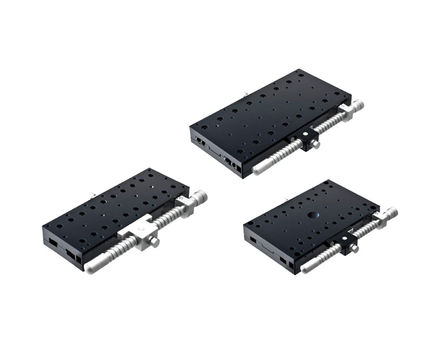

X axis Long Travel Aluminum Crossed Roller Slide Stages

TAM-60161SDM

High precision crossed-roller linear translation stages with black anodized aluminum bodies.

Unique course/fine feature uses a 5mm lead screw on one end, enabling fast translation, and a micrometer on the opposite end for fine adjustments.
The standard stages have a linear scale on the side of the stage with resolution of 1mm and a second scale on the crank(resolution of 20μm).
The LS models have a digital scale with resolution of 0.1mm.

RoHS	Yes
CE	No
Guide	-
Attention	-
Stage Size	60×160 mm
Micrometer Readable Resolution	0.01 mm
Micrometer Position	Side
Moment Stiffness / Pitch	0.05″/N・cm
Moment Stiffness / Yaw	-
Moment Stiffness / Roll	0.25″/N・cm
Guide Method	Crossed roller
Travel Accuracy / Pitch	40″
Travel Accuracy / Yaw	25″
Travel Accuracy / Straightness	2.0 μm
Running Parallelism	15 μm
Travel	Coarse：±35mm　Fine：±3mm
Travel / rotation	Coarse：5mm　Fine：0.5mm
Max. Moment Capacity / Pitch	43.2 N・m
Max. Moment Capacity / Yaw	39.2 N・m
Max. Moment Capacity / Roll	41.2 N・m
Weight	1.1 kg
Primary material	Aluminum
Load Capacity	392 N ( 40.0 kgf )
Finish	Black anodized
Parallelism	50 μm
